Madhatter
 Post subject: 4L build
PostPosted: Sun Jan 25, 2015 1:18 am
Offline

Joined: Wed Jan 14, 2015 1:27 am
Posts: 166
I thought I'd start a thread on the 4L build from last yr. Some may already know of the build from fchat but for those who don't and those who like car porn I thought it's be neat to see.

Custom 4L, These builds use the 360 crank to increase the stroke. The bore is taken out to 89mm and custom darton liners are installed by Guru Steve D. I had custom pistons and rods made as well. The gudgeon pin or wrist pin is increased to handle the loads and forces of 9k rpm and hgh compression. Cams are also customized. EFI of course and COP ignition. I've switched over to Link ECU's from electromotive as well.

On with the pics...


Attachments:
File comment: powder coat and flycut surface.. ooh shiny
IMG_4727.JPG [ 496.29 KiB | Viewed 38455 times ]
File comment: rod bolt stretch
IMG_4594.JPG [ 348.97 KiB | Viewed 38455 times ]
File comment: end float on thrust
IMG_4576.JPG [ 459.1 KiB | Viewed 38455 times ]
File comment: radial runout on crank
IMG_4580.JPG [ 433.11 KiB | Viewed 38455 times ]

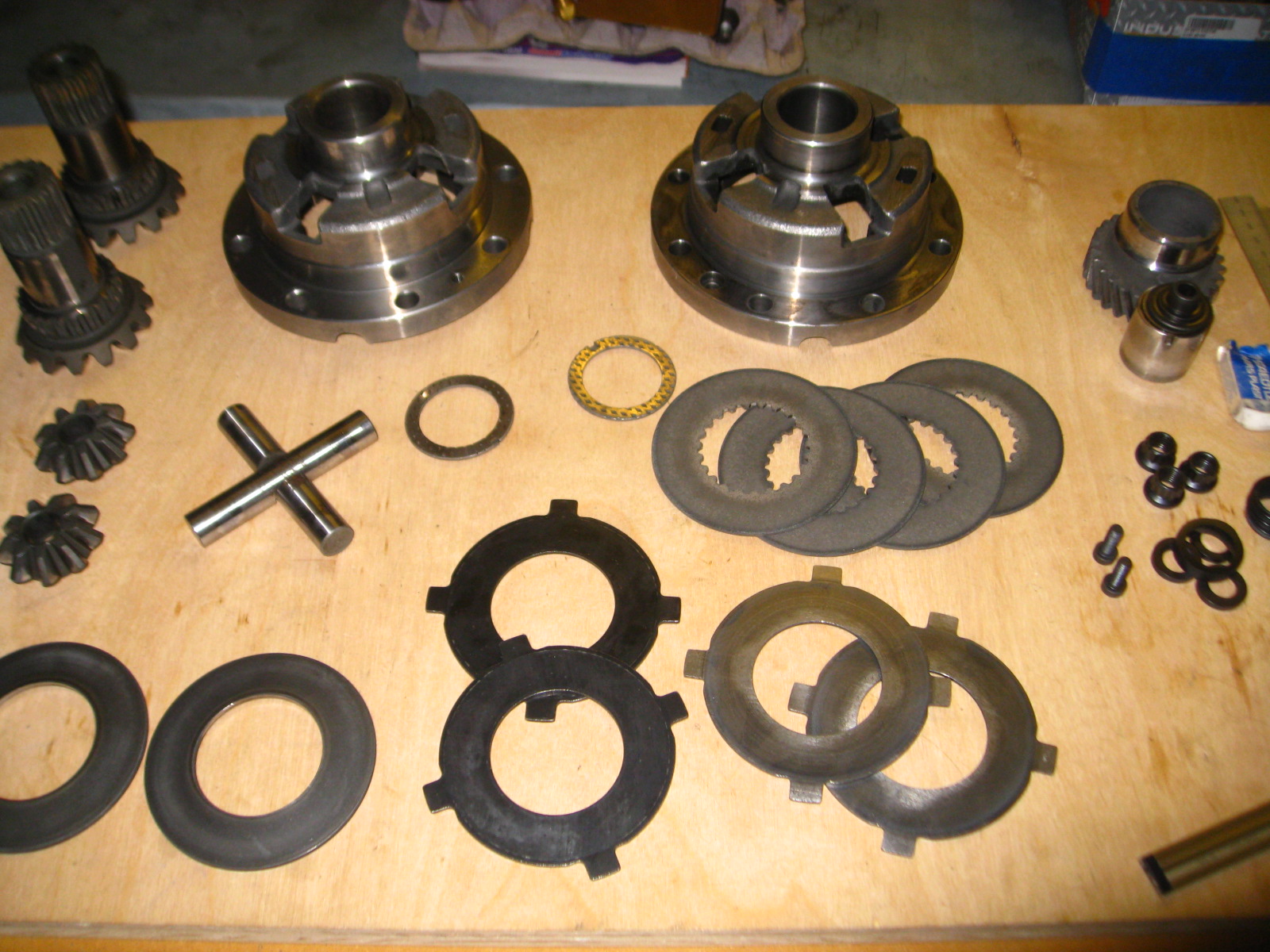

File comment: diff rebuild
IMG_4350.JPG [ 513.36 KiB | Viewed 38455 times ]
IMG_4616.JPG [ 543.67 KiB | Viewed 38455 times ]
File comment: P&R
IMG_4581.JPG [ 647.65 KiB | Viewed 38455 times ]
File comment: pistons & rods
IMG_4515.JPG [ 556.13 KiB | Viewed 38455 times ]
File comment: Front timing cover strip
IMG_4467.JPG [ 643.74 KiB | Viewed 38455 times ]

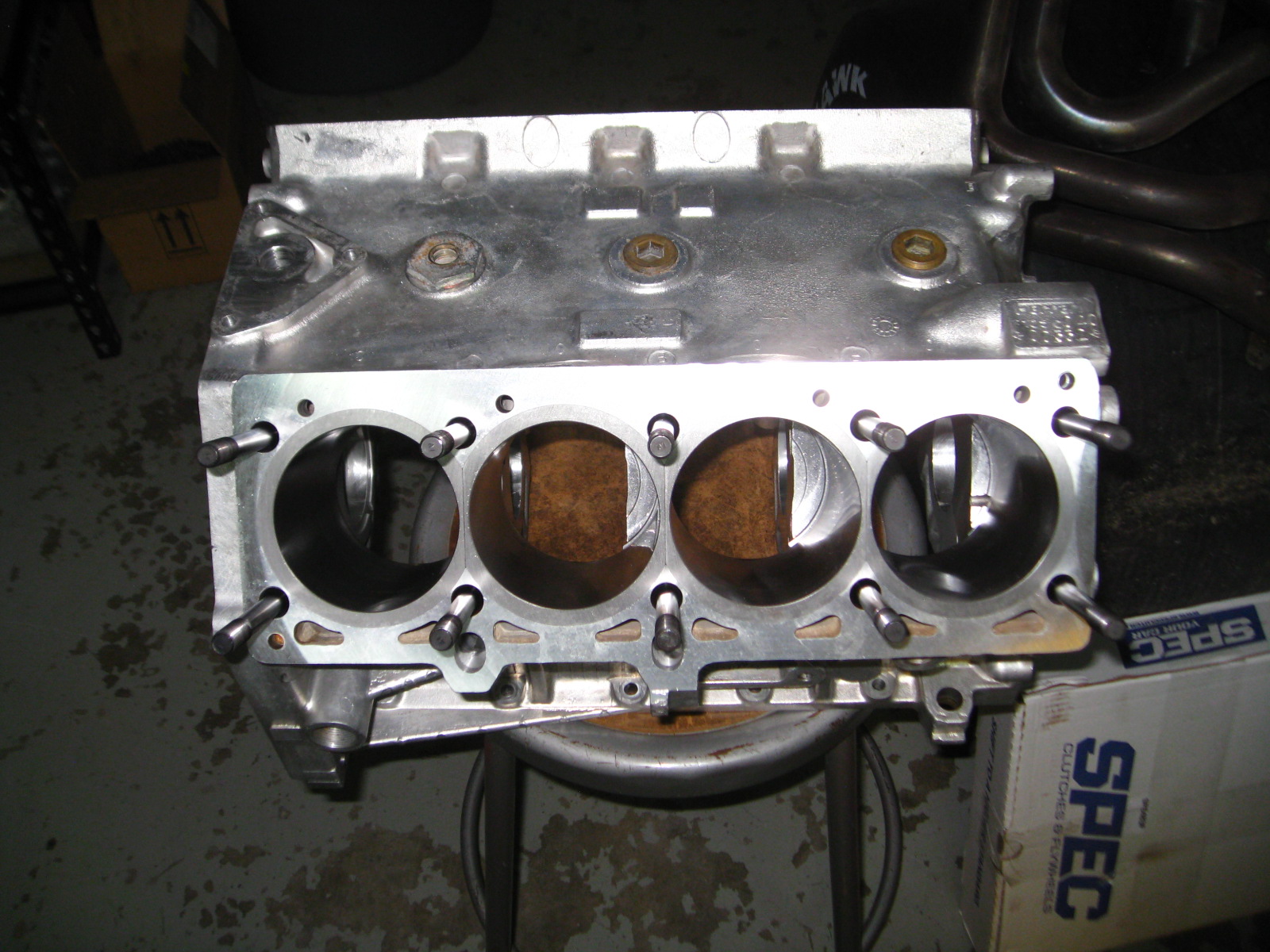

File comment: Engine block
IMG_4473.JPG [ 479.77 KiB | Viewed 38455 times ]
Top
 Profile Send private message

Madhatter
 Post subject: Re: 4L build
PostPosted: Sun Jan 25, 2015 1:42 am
Offline

Joined: Wed Jan 14, 2015 1:27 am
Posts: 166
more..


Attachments:
File comment: oops let a TR sneak in.. very tempting to swap it over right Mark?
20140507_193548.jpg [ 711.82 KiB | Viewed 38455 times ]
File comment: busy making copies!
20141118_181810.jpg [ 1.39 MiB | Viewed 38455 times ]

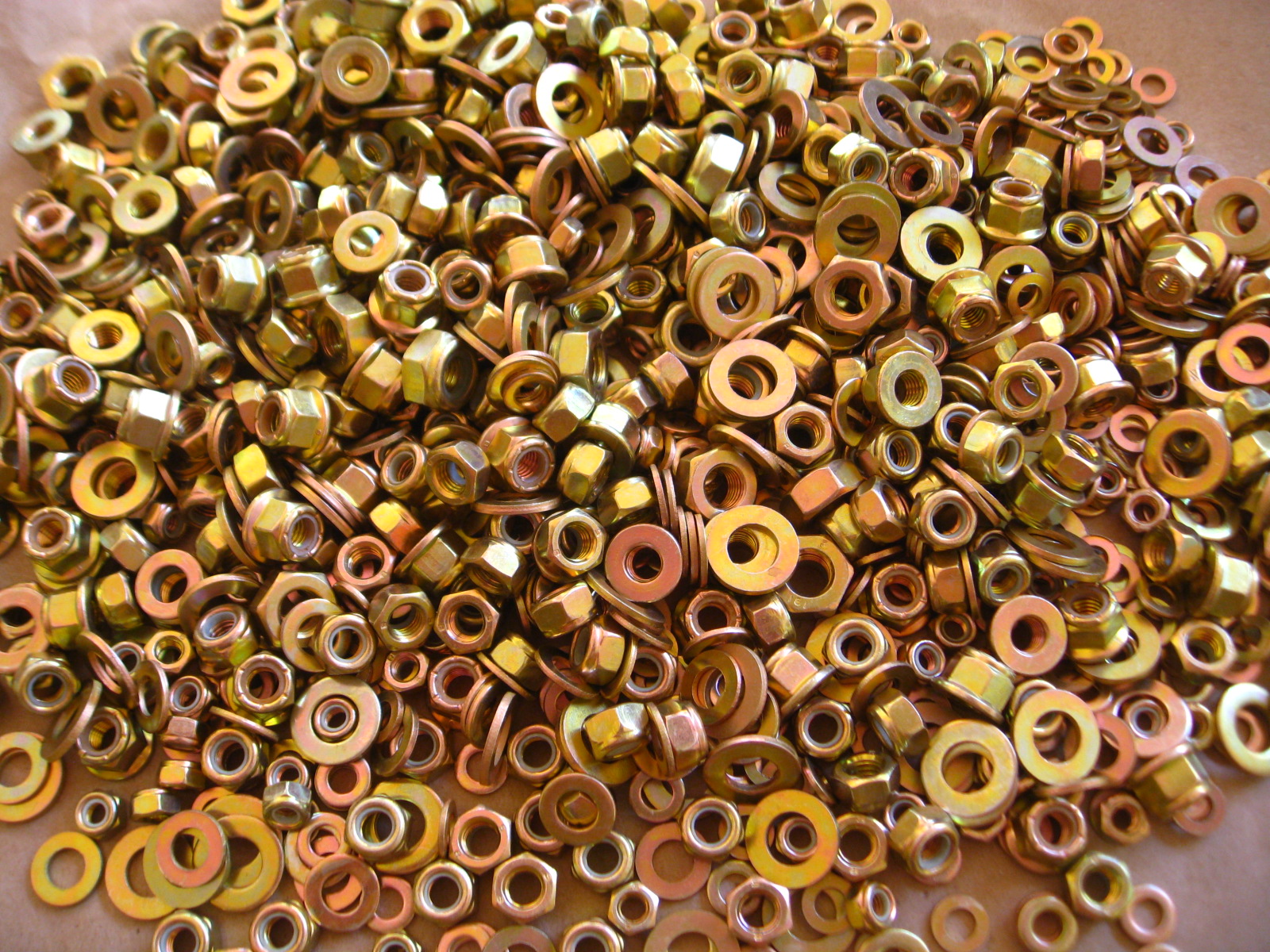

File comment: cadmium plated hardware, local aerospace plater
IMG_4826.JPG [ 816 KiB | Viewed 38455 times ]
File comment: new followers

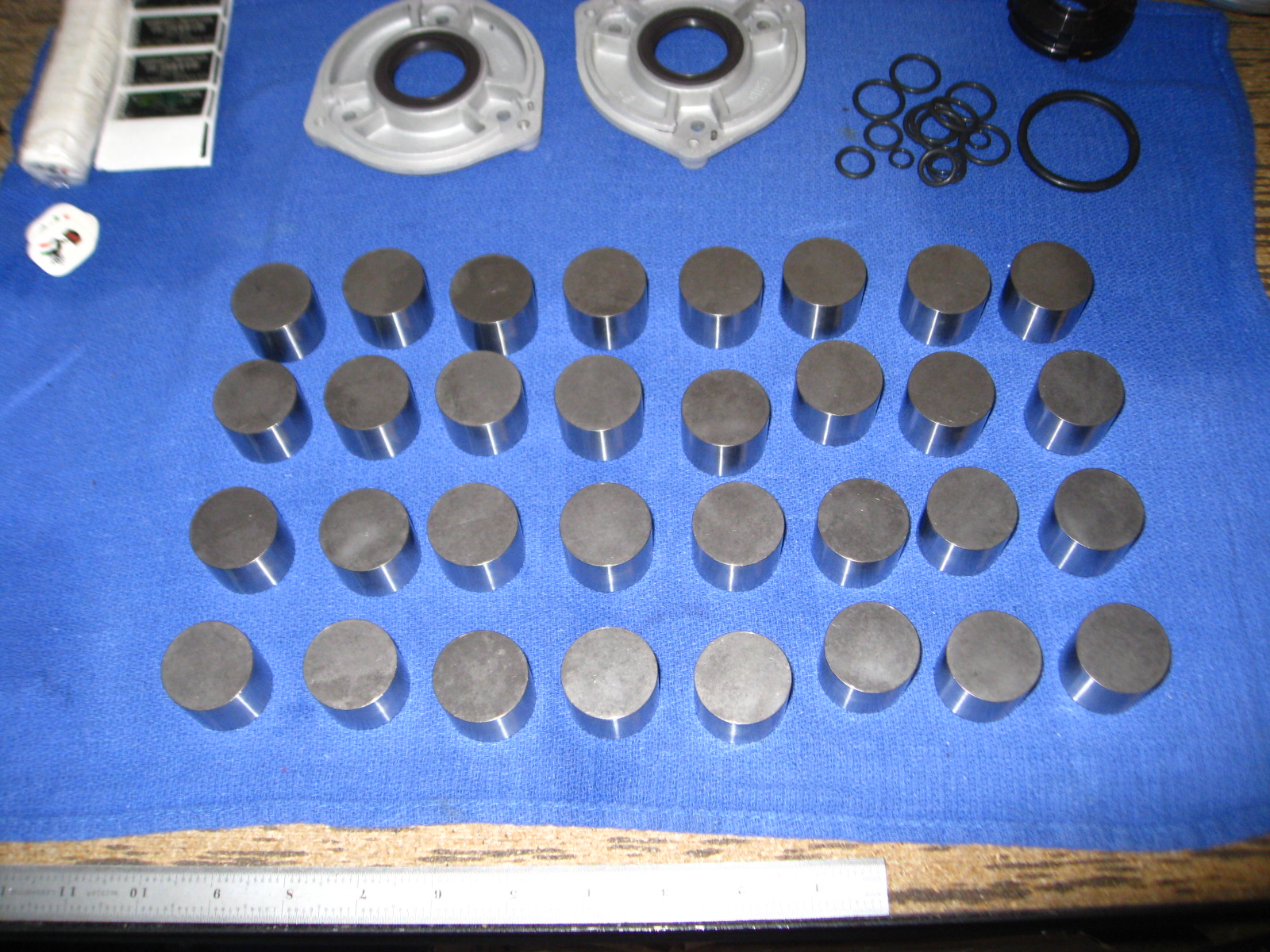

IMG_4827.JPG [ 651.24 KiB | Viewed 38455 times ]
IMG_4983.JPG [ 560.43 KiB | Viewed 38455 times ]
IMG_4951.JPG [ 541.45 KiB | Viewed 38455 times ]
IMG_4932.JPG [ 631.79 KiB | Viewed 38455 times ]
File comment: EFI fuel rails
IMG_4927.JPG [ 578.32 KiB | Viewed 38455 times ]

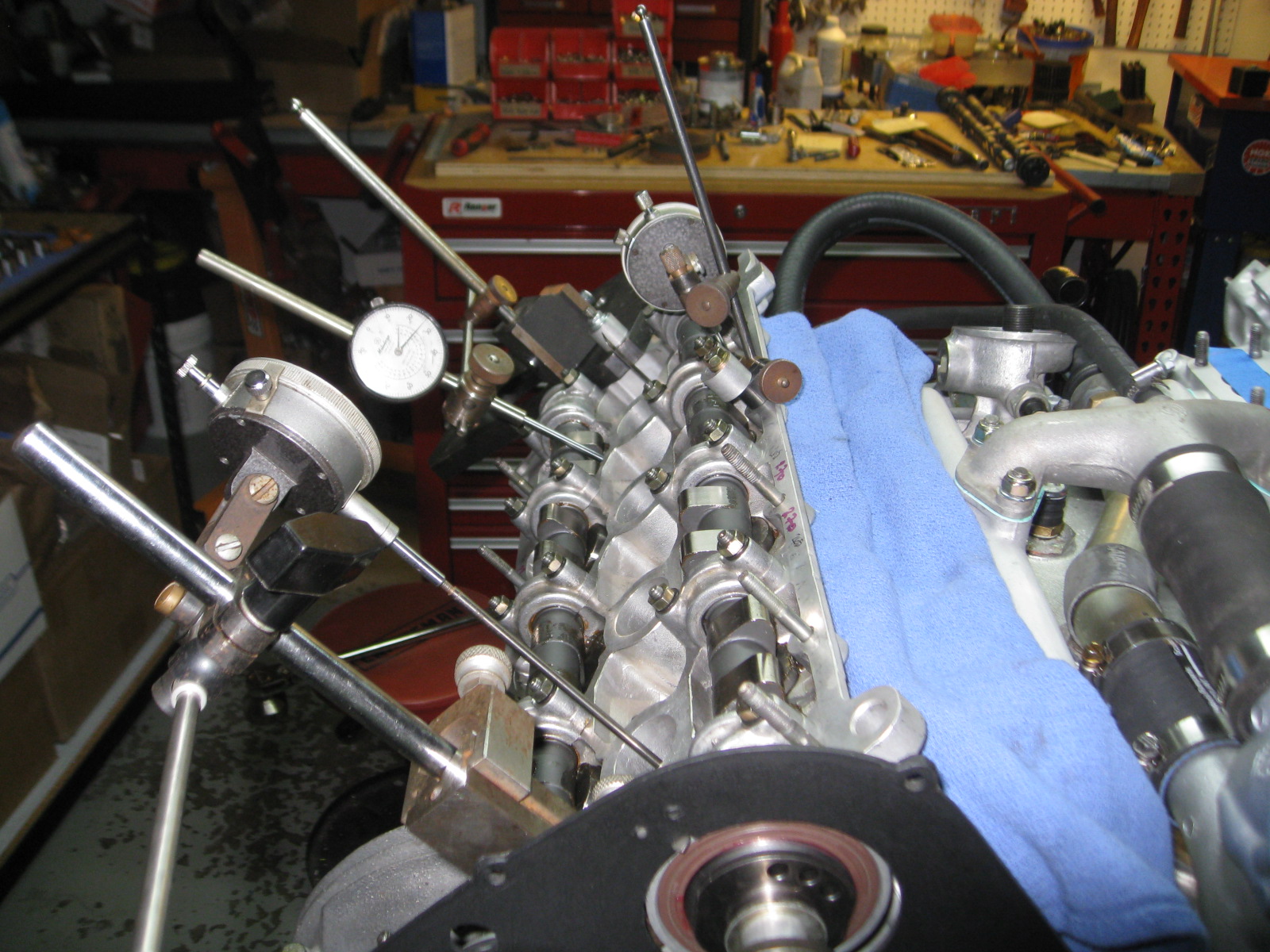

File comment: cam timing
